Shaft Retaining Rings – Normal Type (GB 894) for Axial Lock

Short Description:

Product name:Snap Rings

Place of Origin:Hebei, China

Brand Name:Duojia

Surface treatment:plain

Finish:Black Oxide Coating

Size: φ8mm–φ50mm

Material:Stainless Steel/Carbon Steel

Grade:4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 etc.

Measurement system:Metric

Application:Heavy Industry, General Industry

Certificate:ISO9001 ISO14001 ISO45001 SGS

Package:Small Pack+Carton+Pallet/Bag/Box With Pallet

Sample:Available

Min.Order Quantity:100 Piece/Pieces

Supply Ability:10000 Piece/Pieces per Month

FOB Price:US $0.5 – 9,999 / Piece

delivery:14-30days on qty

payment:t/t/lc

supply ability:500 ton per month

Send email to us

Product Detail

Product Tags

introduction to products：

Retaining Rings for Shafts - Normal Type (e.g., GB 894 standard, also called shaft circlips): They are circular, open - loop fasteners with lug - like tabs (featuring holes for installation tools). Crafted from materials such as 65Mn carbon steel (with a black oxide finish for rust resistance) or 304 stainless steel (offering strong corrosion resistance), these rings provide a cost - effective and reliable solution for retaining components axially. They are extensively used in machinery, automotive systems, and industrial equipment to secure parts like gears, bearings, and pulleys on shafts.

Instructions for Use：

Retaining Rings for Shafts are fasteners installed in grooves on shafts, serving to restrict the axial movement of components. The inner diameter of the ring is slightly smaller than the diameter of the assembly position on the shaft. During installation:

Use circlip pliers that match the size of the lug holes.
Insert the jaws of the pliers into the lug holes of the ring and expand the ring until it can be placed into the pre - machined groove on the shaft.
Ensure the ring is securely seated in the groove to prevent component displacement.

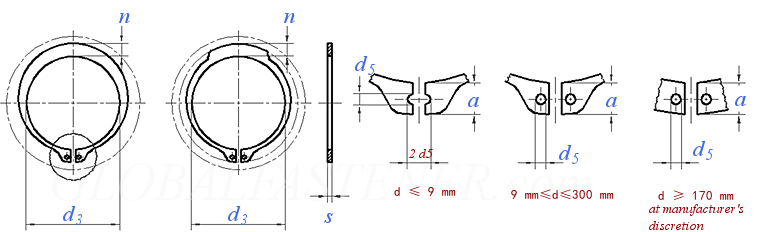

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

0.4	0.4	0.6	0.7	0.8	0.8	1	1	1	1	1	1	1	1	1
0.35	0.35	0.55	0.65	0.75	0.75	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94
2.74	3.74	4.74	5.64	6.56	7.46	8.46	9.4	10.3	11.1	12	13	13.9	14.8	15.8
2.55	3.55	4.55	5.45	6.32	7.22	8.22	8.94	9.84	10.64	11.54	12.54	13.44	14.34	15.34
1	1	1	1.2	1.2	1.2	1.2	1.5	1.5	1.7	1.7	1.7	1.7	1.7	1.7
1.9	2.2	2.5	2.7	3.1	3.2	3.3	3.3	3.3	3.3	3.4	3.5	3.6	3.7	3.8
0.8	0.9	1.1	1.3	1.4	1.5	1.7	1.8	1.8	1.8	2	2.1	2.2	2.2	2.3
0.017	0.022	0.066	0.084	0.121	0.158	0.300	0.340	0.410	0.500	0.530	0.640	0.670	0.700	0.820

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	1.5	1.5	1.75
1.14	1.14	1.14	1.14	1.14	1.14	1.14	1.14	1.44	1.44	1.44	1.44	1.44	1.44	1.69
16.6	17.6	18.63	19.63	20.63	22.41	23.41	24.41	26.11	27.11	28.11	29.81	31.75	32.45	33.45
16.14	17.14	18.08	19.08	20.08	21.78	22.78	23.78	25.48	26.48	27.48	29.18	31	31.7	32.7
2	2	2	2	2	2	2	2	2	2	2	2.5	2.5	2.5	2.5
3.9	3.9	4	4.1	4.2	4.4	4.4	4.5	4.7	4.8	5	5.2	5.4	5.6	5.6
2.4	2.5	2.6	2.7	2.8	3	3	3.1	3.2	3.4	3.5	3.6	3.8	3.9	4
1.11	1.22	1.30	1.42	1.50	1.77	1.90	1.96	2.92	3.2	3.31	3.54	3.8	4.00	5.00

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

1.75	1.75	1.75	1.75	1.75	2	2	2	2	2	2	2	2	2.5	2.5
1.69	1.69	1.69	1.69	1.69	1.93	1.93	1.93	1.93	1.93	1.93	1.93	1.93	2.43	2.43
35.45	36.89	38.89	41.89	44.89	46.19	48.19	51.26	52.26	54.26	56.26	58.26	59.26	61.26	63.96
34.7	35.6	37.6	40.6	43.6	44.9	46.9	49.7	50.7	52.7	54.7	56.7	57.7	59.7	62.4
2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	3	3
5.8	6	6.5	6.7	6.9	6.9	7	7.2	7.3	7.3	7.4	7.5	7.6	7.8	8
4.2	4.4	4.5	4.7	5	5.1	5.2	5.4	5.5	5.6	5.8	6	6.2	6.3	6.5
5.62	6.03	6.50	7.50	7.90	10.2	11.1	11.4	11.8	12.6	12.9	14.3	15.9	18.2	21.8

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

2.5	2.5	2.5	2.5	2.5	2.5	3	3	3	3	3	4	4	4	4
2.43	2.43	2.43	2.43	2.43	2.43	2.92	2.92	2.92	2.92	2.92	3.9	3.9	3.9	3.9
65.96	67.96	70.96	73.96	74.96	76.96	79.96	83.04	85.04	90.04	95.04	98.54	103.54	108.54	113.54
64.4	66.4	69.4	72.4	73.4	75.4	78.4	81.2	83.2	88.2	93.2	96.7	101.7	106.7	111.7
3	3	3	3	3	3	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
8.1	8.2	8.4	8.6	8.6	8.7	8.7	8.8	8.8	9.4	9.6	9.9	10.1	10.6	11
6.6	6.8	7	7.3	7.4	7.6	7.8	8	8.2	8.6	9	9.3	9.6	9.8	10.2
22.0	22.5	24.6	26.2	27.3	31.2	36.4	41.2	44.5	49	53.7	80	82	84	86

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9	3.9
118.54	123.63	128.63	133.63	138.63	142.63	146.63	151.63	156.13	161.13	166.13	171.03	176.13	181.22	186.22
116.7	121.5	126.5	131.5	136.5	140.5	144.5	149.5	154	159	164	168.9	174	178.8	183.8
4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
11.4	11.6	11.8	12	12.2	13	13	13.3	13.5	13.5	13.5	14.2	14.2	14.2	14.2
10.4	10.7	11	11.2	11.5	11.8	12	12.2	12.5	12.9	12.9	13.5	13.5	14	14
90	100	104	110	115	120	135	150	160	170	180	190	200	210	220

Nominal Diameter
d

s	max
s	min
d3	max
d3	min
d5	min
a	max
n	≈
per 1000 units ≈ kg

4	5	5	5	5	5	5	5	5	5	5
3.9	4.88	4.88	4.88	4.88	4.88	4.88	4.88	4.88	4.88	4.88
191.22	198.72	208.72	218.72	228.72	238.72	245.72	255.81	265.81	275.81	285.81
188.8	196.3	206.3	216.3	226.3	236.3	243.3	253	263	273	283
4	4	4	4	4	4	5	5	5	5	5
14.2	14.2	14.2	14.2	14.2	14.2	16.2	16.2	16.2	16.2	16.2
14	14	14	14	14	14	16	16	16	16	16
230	248	265	290	310	335	355	375	398	418	440
